Fan Trained Pear

Fan-trained pear ‘Concorde’ (July 2018)

How I Trained A Concorde Pear Fan
Year on Year Development

In this post you can see:

  • How my fan-trained pear started as a young-freshly trained new fruit tree
  • How I planted and trained it initially
  • How I summer-pruned it, and
  • How it developed over the years


Planting and Initial Training

If you purchase trained fruit at a garden centre they often come attached to an impressive bamboo frame (like the one below). The frame can be a real distraction because what you are actually getting – and what you need to think about before parting with your cash – is the structure of the tree strapped to it. The photo to its right shows the same tree in the nude, looking a lot less impressive. The trick when purchasing is to take note of the actual tree form, and see past the fancy-pants frame. In the case of the tree below, the shape was something I could work with, so was ideal.


To decide if the pre-trained form is suitable for your needs you need to have an idea about the final form you are after. I chose the one above because I want to create a fan and this specimen has a reasonable symmetry with three shoots on each side. If there were an odd number I would be cutting out the central one anyway.

Traditional fan trained trees have a form like this:

Fan trained fruit tree form

The one I have bought could be used for this classic shape if I cut out the central leader along with the top four shoots leaving just two side shoots, but I’m not going to. The ‘risk’ in trying to train all six shoots, rather than training just two as in the diagram above, is that the top shoots will be more vigorous, and I may struggle to train the lower ones to the full width. However, this is less of a problem with a pear than it would be with a cherry or plum, and that’s what makes pears (and apples) suitable for training as espaliers with three or four completely horizontal tiered branches like this:

Three tier espalier trained fruit tree diagram

So my plan is to go somewhere between these two traditional forms: a kind of espaliered-fan! There are no hard and fast rules in this game, and half the fun is seeing how it turns out.  For other trained forms see my dedicated page here.

Other things to look for when purchasing pre-trained fruit trees:

  • Check there are no damaged areas, particularly around pruning scars or at the graft.
  • Check that all the shoots are healthy, flexible and vigorous (with good buds)
  • Check that the graft is a good 4-6in (10-15cm) above the soil, and is clean and sound

I bought my pear from a local garden centre, rather than ordering it online. This has the advantage that I could check it over before purchase, see healthy buds about to break on all the shoots, plus it gave me the flexibility to buy it on a weekend when I had time to plant it immediately. Oh, and it also comes with a “guarantee for life” – what ever that is. Ordering online from a reputable nursery will inevitably give you more choice and will probably be cheaper – although savings can be lost on delivery charges unless you are ordering several trees. Another problem is that such nurseries tend to sell out in the autumn, and I wanted to purchase in the spring.

Two things to consider if you are thinking of purchasing from a garden centre: first, they only keep small stocks of trained fruit (if they stock them at all) so if you are desperate to secure one you are best off ordering from a nursery in the autumn. Secondly, many garden centres often keep unsold stock for a year or two. Avoid older plants, as not only will they have suffered nutrient deficiency from living in a pot under the dubious care of garden centre staff, but the shoots become less flexible with age and you are likely to snap branches as you set about the initial training.

Initial Training

AN trained pear - planting against fence with support wires

It is sensible to get your support wires in place before you plant the tree (I use Grippler nylon wires – I much prefer them to galvanised steel). These wires should stand clear of the wall or fence by a couple of inches (5cm) to provide air flow behind the plant. The tree is then planted so that the plane of the branches are a further inch or two in front of the wires. If your plant is not quite flat, it should still be OK as long as there is enough flexibility in the shoots to  bend them into place. Any branches that are pointing significantly out of plane should be cut off. Make sure that you plant the graft well clear of the ground to minimise infections and avoid rooting or suckering from the graft joint.

Fan trained pear - tying in first tier branches to canes

Bamboo canes are fastened to the two lower-tier branches and gently lowered to a suitable angle. Whilst doing this they should not be allowed to fall, as they might snap the branches. Once a position is found the cane can be tied in a couple of places to the support wires to hold it in place. These ties should be adjustable, so the canes can be moved later in the year as the shoots extend

The young growth (last season’s) is the most flexible, whereas older wood is more brittle and prone to snapping. Lower-tier branches will have two-year old wood at their base, so need gentle handling. It is possible to bend the older wood less and the younger, newer extension growth more – you can see this particularly on the left hand branch above.

The right hand branch is not as straight as I would like, but it will still be amenable to adjustment towards the end of the coming year once it has thickened up and has new extension growth – so I’ll adjust it then. Over-tightening the ties now can restrict growth and cut into the expanding wood.

Fan trained pear - tying in second tier branches to canes

The second tier is treated the same. These shoots are one year old wood all the way back to the trunk, so are easily bent through a large angle, however, their weak point is where they meet the trunk, so I try to avoid putting strain there. This is achieved by placing the first cane tie several inches from the joint so that the main flexing is beyond this point.

Fan trained pear - tying in third tier branches to canes

Finally the top tier shoots are tied in completing the initial training. In late summer, once the majority of growth has taken place, I will revisit the shape as a whole, possibly training the lowest tier horizontally along the second wire, but for now I’m happy with the shape.

Fan trained pear - initial training completed

Here’s what it looks like. I have deliberately used long canes to fill the final space I hope it will occupy. I’ve done that mainly for visual impact: In practice I will change these canes every year or so as I train and tie in new growth.

Variety – Concorde

As this is the first and possibly only pear I will have in my garden I went for a self-fertile variety, although it would do better with a pollinator. Luckily, our neighbors five doors down have two conference pear trees in their garden, so I can be fairly sure of getting some cross pollination.

According to Orange Pippin Trees:

Concorde is without doubt one of the best pears for the UK. It is a fairly new variety, but combines the strengths of two classic 19th century varieties. From Conference it inherits reliability, cropping potential, and excellent suitability for the UK climate. From Doyenne du Comice it inherits top quality flavour. The result is a pear that tastes as good as many of the old-fashioned European pears, and yet grows well in the sometimes marginal conditions of an English summer.

The fruit is very similar to Conference in appearance, tall and pear shaped with extensive russet. The skin colour is variable, normally a yellow-cream colour but it may sometimes be flushed from exposure to sunlight.

Concorde performs well in many situations and is a good choice for growers who want to produce pears organically or without chemicals.

I’ll take off any blossom this year so the tree can put its energy into growth. Next year I might let it set one or two fruit. After that I expect I’ll have to thin it as it is very heavy bearing, but I should get a large crop, possibly with a good red blush as the sun will get to the fruit easily.


UPDATE: Late summer 2016


The pear has grown nicely. Compared to the apples it has had far fewer pests. The first flush of leaves were perfect, although the later growth was less happy. You can see that the new vertical shoots have much smaller leaves. Even so the fruit is almost perfect – well formed and handsome. We have picked one, and are currently ripening it in doors. We will pick the others soon.

Those long vertical new shoots are perfect for training, so today (Sep 24th) I got my secateurs, canes and ties, and made a start:


If you study the two photos you will see which canes have been added, and which have been lowered and raised. Branches on the old canes are still flexible enough to move a short distance, which creates room for the new shoots to be tied in. Hardly any growth needed cutting back. Almost everything could be trained into the existing space.

At this stage I am still creating the basic framework. Next year the older branches will be less flexible and will probably remain in their position for the rest of the tree’s life. New growth, extending from their tips, however, will be supple enough to train into the gaps around the periphery. Thus the fan ‘grows’.

Here’s the first pear of the season. It’s pretty well perfect. I think it was picked a little early, and we only ripened it indoors for a week. I reckon it could have done with another week. That said, it was sweet, crisp, mildly fragrant and really tasty.


UPDATE: Spring 2018

April. The fan-form is taking shape nicely, and the pear tree is growing healthily. We didn’t get many pears last year, and this spring there are only a few clusters of flowers, so probably not many pears this year either! Still, this is a young tree (3 years now) so is likely to become more productive in time.

Trained pears can live for many decades, so it has plenty of time… For now I can enjoy the beautiful (if sparse) blossom:

UPDATE: Summer 2018

July 26th. An ideal time for summer pruning. The new shoots of pears become woody earlier than apples, so late July is ideal for summer pruning. Apples must wait until late august otherwise they are likely to make a lot of vegetative growth.

DSC_0003 (3)

Before pruning (above) You can see lots of vertical shoots in the middle, as well as many side shoots that have formed along the main stems. These are all cut back to 4 or 5 basal leaves.

DSC_0011 (1)

After pruning (above) A much neater fan, which hopefully will produce a lot of happy flowering buds and, perhaps, next year, some pears!

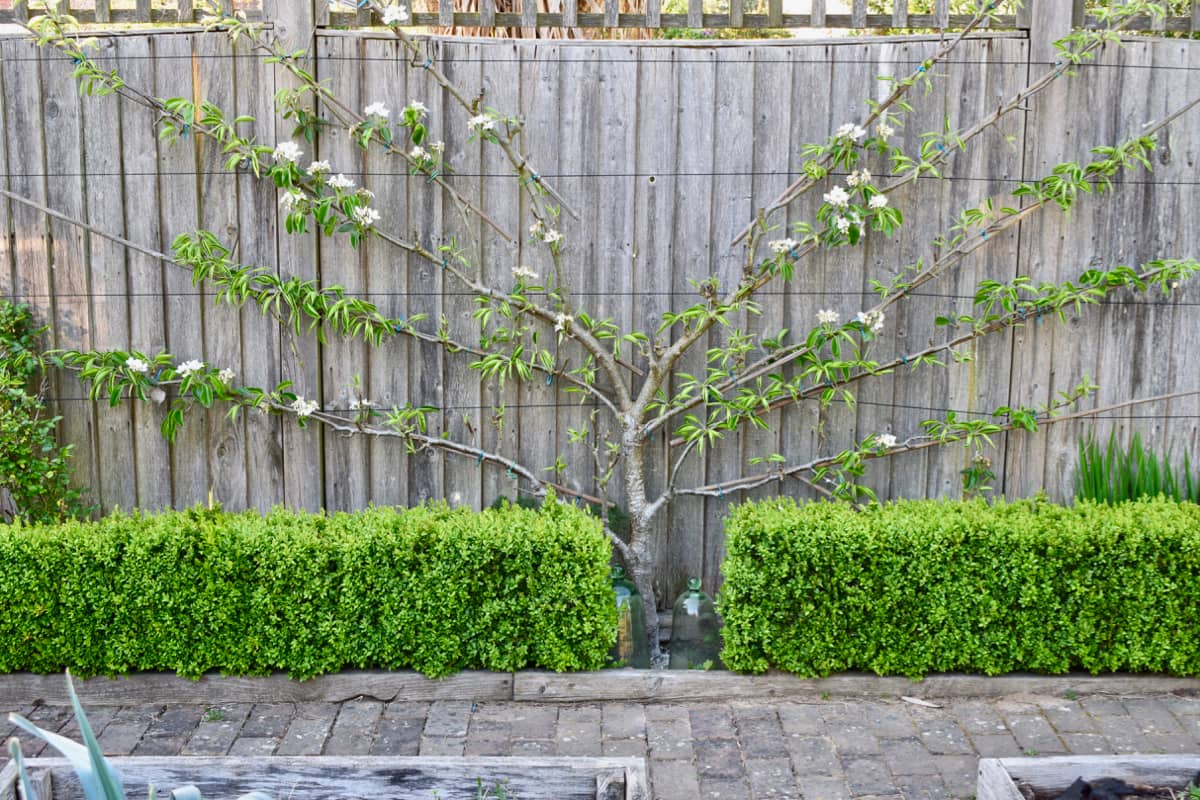

Spring: Flowers and foliage emerging; April 20th 2019
Concorde pear — fan-trained between two multi-cordon apples; May 2019

UPDATE: Autumn 2019

Fan-trained Concorde pear, October 20th 2019

The pear produced ten good pears this year (after a June thinning of each ‘bunch’ from four young fruitlets to one). They have all grown to a reasonable size, but are ripening very late. To check for ripeness one has to pick one and take it indoors for a few days. The first one I tried was in the first week of October, but it stayed hard and had little flavour when I ate it a week later. The second attempt, picked in the second week was still crunchy, but mildly sweet and aromatic. I have just brought in a third one to see if it will ripen. Looks like I should expect to pick them in late October in future years!

Close up of the fruit. Still not ready to pick!


Spring Blossom

The quantity of blossom was disappointing this year. I don’t know why. The tree has a great structure and size now. I will not be increasing its main framework, just pruning side shoots to encourage spur formation from now on.

UPDATE: 2020 – Summer Pruning

Summer pruning consisted of cutting back all side shoots to the lowest set of leaves — usually a cluster of 3 to 5 — which usually means cutting the shoots back to 1 or 2 inches. Almost all shoots had a nice dense cluster of leaves at eh base just right for turning into flowering/fruiting spurs. The end growth was pruned back to the ends of the canes.

There are only half a dozen pears this year.

4 thoughts on “Fan Trained Pear”

  1. Hi Keir, loving your blog. I’m planning to start growing some trained fruit trees in my London garden and just in the planning stage – I like the idea of a pear fan-trained tree. One question I have that I can’t find an answer to anywhere is: Is it an absolute mandatory that a fan-trained tree needs to be against a wall or fence. Can I succeed in growing one between two fence posts (as part of a larger structure I’m creating which will have space for espalier trees) if well trained against firm wire/bamboo etc? Or is the wall support absolutely integral? Thanks, Henry

    • Hi Henry, yes you can grow a fan trained pear on wires between posts no problem. The benefits are that it will get better air circulation and more light. The main reason for growing on a wall is that the tree uses an otherwise unproductive wall. If you wanted to grow figs or peaches then a wall would increase the heat improving fruiting, but pears will manage fine in the open. (That said, there are a few pear varieties that do better on the continent than in the U.K., and they might do better against a warm wall)

  2. We have bought fan trained pear and cherry trees, what would happen if we took the fan frames off would they just grow out naturally?

    • There is no problem with removing the supplied frame as long as you attach the fans to your own support (wires, fence, trellis or bamboo canes etc)

      To maintain the shape you need to prune them twice per year. Late summer, tie in all main shoots that can be used to extend the shape, while cutting off any new shoots that point in the wrong direction. Cut back all side shoots to three leaves to encourage formation of fruiting spurs. In winter tie in shoots to canes and cut back any shoots that formed since the summer prune as before.

      Read my articles for more information.
