Cherry Fan

▲ My fan-trained cherry, planted in spring 2008, spans 15′ and stands 6′ high following four years of training. Shown here in May 2013 [update]

Training Theory

Cherries form fruiting spurs along the older branches. The aim of training is to create a permanent framework of strong branches along which fruiting spurs can flower and fruit year after year. To get the permanent framework right you have to start training with a young tree, and prune and tie suitable stems each year. New growth is pliable and can easily be bent into place but as branches get older and thicker they become increasingly rigid, so it is important to maintain the annual pruning regimen.

The fan is the preferred form for the cherry. The main framework should consist of two or three main branches spreading to each side of the short trunk. The low angle of the branches causes the development of fruiting spurs rather than vegetative (unproductive) shoots. Each year new growth will extend the length of the main branches and they can be trained in to extend the size of the fan. Along the main branches side shoots will develop. Some are short, with flowers at their base. These are the fruiting spurs, and all they need to encourage future productivity is to be trimmed back to 3 leaves in the summer. Other side shoots are more vigorous, and may not have flowers – these are side branches, some of which can be trained in to add to the permanent framework. The remainder are cut back to a few leaves from their base to encourage them to become fruiting spurs.

Cherries, like all prunus species, should only be pruned in the summer (May to July) as one of their main diseases, silver-leaf, is a fungus carries by the winter rains. If emergency pruning has to be done outside these months it is important to pick a dry period and apply a wound sealer to every cut.

Summer pruning consists of the following:

  1. Cut out any shoots growing backwards or forwards away from the plane of the fan.
  2. Select any new shoots that are growing into a suitable space in the fan and tie them to cane. Tie the cane to the wire supports so that it holds the new shoot in the required position.

Training Diary

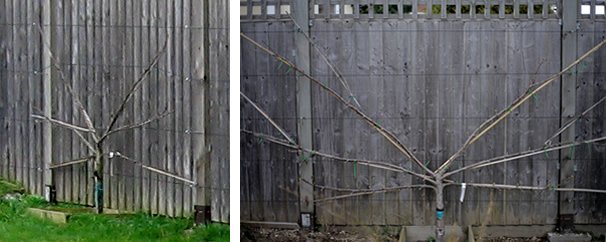

2008 The bare rooted tree I purchased was probably just two or three years old. It was partially trained into a vague fan shape and had a seven or eight whip like shoots. In the summer I pruned these back to the best half-dozen and tied them to 4′ canes, which I then tied to the wires on the fence creating a basic fan shape. By the end of the year it looked like a proper little fan (above left)

2009 During the following summer I replaced the main canes with 8′ ones and tied in the main shoots which had almost doubled in length. I added shorter canes to accommodate the best placed new side shoots to extend the fan. (Autumn 2009, above right)

2010  This was the first summer with fruit – you can see them peeping out from among the foliage above. This photo was taken part way through pruning, hence there are a number of stray shoots on the right hand side. Here’s how I dealt with them:

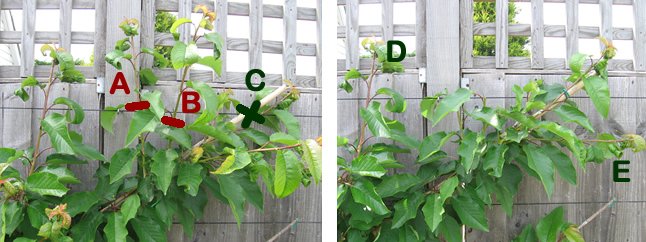

Before | After

New shoots A and B were pruned back to just a few leaves – this encourages them to become fruiting shoots in future years. Shoot C was the extension growth of the main branch so I tied it to the cane. Shoot D and E were pointing in the right direction to create additional branches for the permanent framework, so they have been left and will be tied in in winter or the following summer.

2011 In the winter I tied in new branches, replaced and adjusted canes and loosened old ties that threatened to strangle the expanding branches. The photo above shows the cherry in April 2011, with blossom and emerging leaves. In the top right you can see shoot D and E (mentioned above) tied to their new canes, contributing to the expanding fan structure.

 To be continued…

 I will keep this post updated as the cherry develops. Exciting, eh?


UPDATE 2012

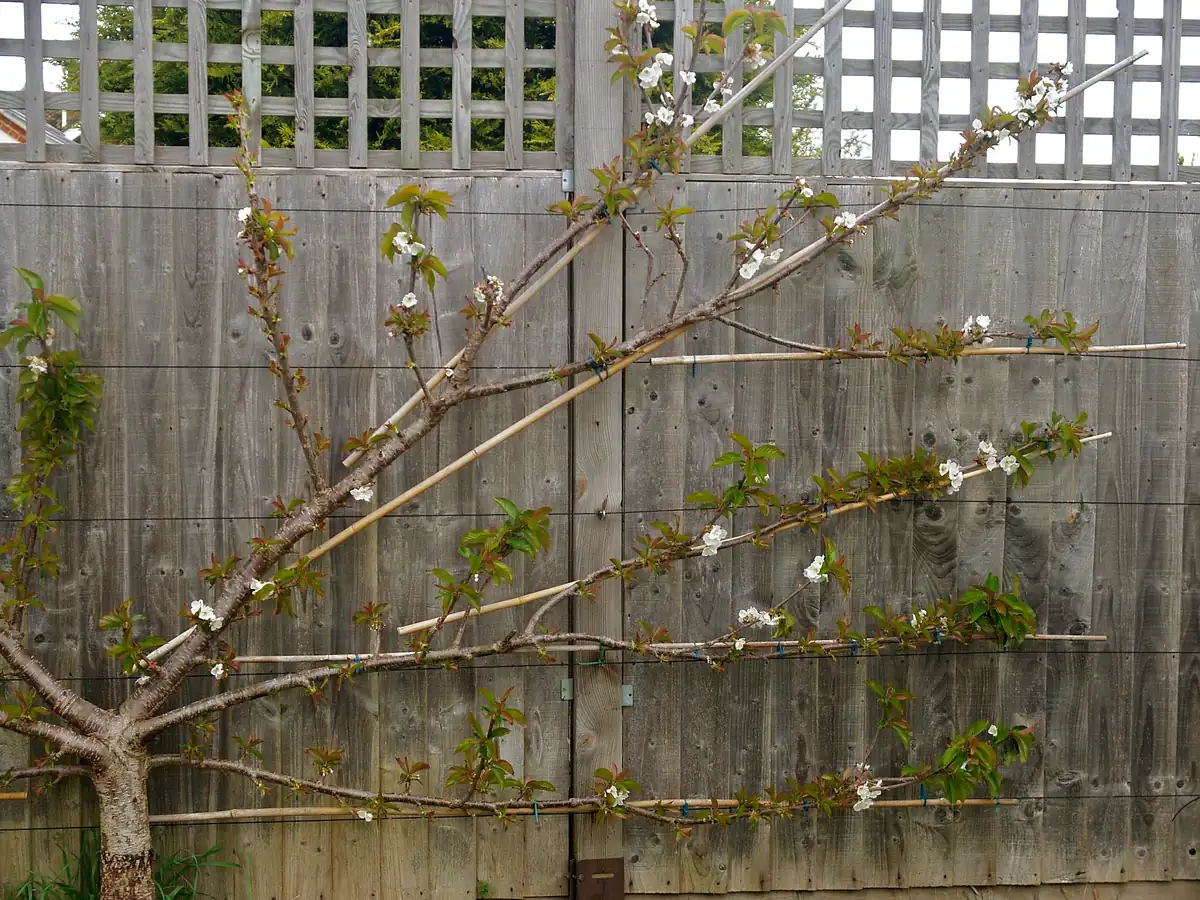

Showing just half of the fan so the detail can be better seen

Fruit has been sporadic throughout the like of this cherry because it has suffered with cherry aphid. These sap-suckers cause the leaves to curl and fruit to become disfigured. This proved a really difficult issue to get on top of. When I washed off the aphids, they were collected up by ants and returned to the tree within 24 hours! The cherries that were produced were, however, really delicious. I planned to find a suitable chemical control for future years.

UPDATE 2013

By spring 2013 the cherry was looking absolutely beautiful.

Unfortunately, later in the year we had an extension built on the back of our house, and the cherry had to go.


8 thoughts on “Cherry Fan”

  1. Good morning. This comes with a big “thank you” for such a great Blog and excellent pruning information!
    I have several Cherry trees including 2 (delinquent) Cherry trees trained as Fans which have got a bit too big for their boots.. now armed with cutting equipment and your instructions.. their naughty days are numbered!
    Sara & GeeGee.

    Reply
  2. Fantastic information with very useful photographs, I’ve just planted a small fan trained cherry (Stella) and understand exactly what to do to train it properly. Many thanks and beautiful trees!

    Reply
  3. Thank you for such clear information and photographs on pruning into a fan shape. I now feel I have the knowledge to tackle my tree before it becomes a lost cause or worse dies through incorrect pruning. On another note, I have 2 column cherry trees which this year have decided to produce side shoots on the top quarter. Should I cut these shoots off completely or trim back to a couple of leaves? Thanks again.

    Reply
    • Hi Sarah, thanks for the kind comments.

      Assuming you mean that these two shoots are sticking out at a daft angle, then yes, cut them out. By all means cut them back to two leaves which might encourage flower formation at that point next year. Remember though only prune the cherry family in the summer months to avoid silver leaf infection.

      Good luck!

      Reply
  4. Hi Keir. Great blog… it’s so hard to find good fruit tree advice online or anywhere else for that matter. I think I’ve got the hang of apples and pears, but recently invested in a young trained cherry (prunus avium sunburst leivorm). What are the differences between pruning cherries versus apples and pears?
